ME-FLM82 FLETA M8.2 Competition 1/8th Scale Brushless ESC 180A Black (Out of stock)

Home » Motor and ESC » ME-FLM82 FLETA M8.2 Competition 1/8th Scale Brushless ESC 180A Black (Out of stock)
ME-FLM82 FLETA M8.2 Competition 1/8th Scale Brushless ESC 180A Black (Out of stock)
  • ME-FLM82 FLETA M8.2 Competition 1/8th Scale Brushless ESC 180A Black (Out of stock)
  • Motor and ESC
  • Manufacturer
    :
    Muchmore
  • Model
    :
    ME-FLM82
  • Weight
    :
    900.00 Gram
  • Price
    :
    USD 190.00
  • Qty
    :

FLOW-MAX™ OPTIMISED COOLING DESIGN
FLOW-MAX heat sink designed after various tests. Construction from thermo-conductive aluminium makes the heat sink case highly efficient for maximum cooling.


ME-FLM82 FLETA M8.2 Competition 1/8th Scale Brushless ESC 180A Black  FLETA M8.2 コンペティション 1/8用 ブラシレスESC 180A ブラック仕様

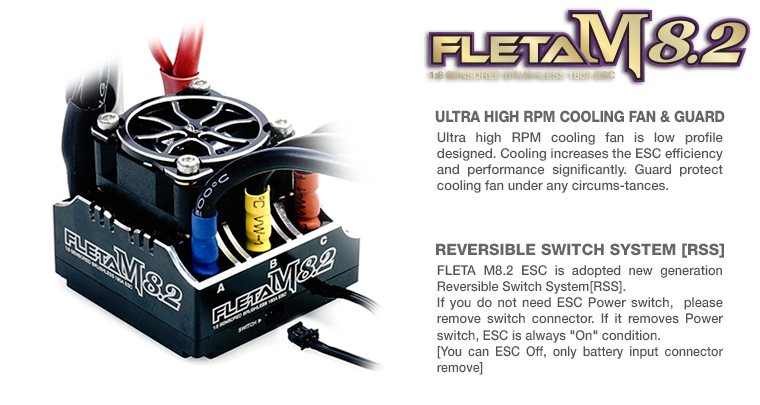

ULTRA HIGH RPM COOLING FAN & GUARD
Ultra high RPM cooling fan is low profile designed. Cooling increases the ESC efficiency and performance significantly.
Guard protect cooling fan under any circums-tances.

REVERSIBLE SWITCH SYSTEM [RSS]
FLETA M8.2 ESC is adopted new generation Reversible Switch System[RSS].
If you do not need ESC Power switch,  please remove switch connector.
If it removes Power switch, ESC is always "On" condition.
[You can ESC Off, only battery input connector remove]


ME-FLM82 FLETA M8.2 Competition 1/8th Scale Brushless ESC 180A Black  FLETA M8.2 コンペティション 1/8用 ブラシレスESC 180A ブラック仕様

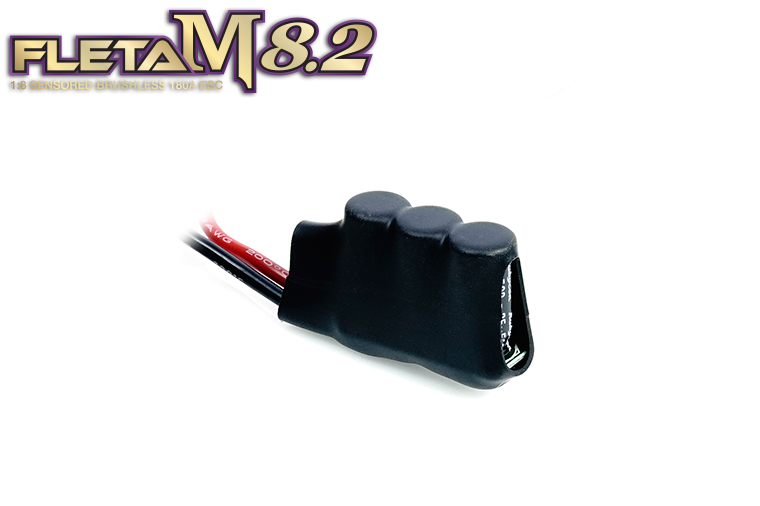

TRIPLE ESC POWER CAPACITOR
Triple esc power capacitor is based on the latest Lipo technology and features lowest possible low impedance and even more power with linear throttle filling.

Before Using SHR program card, Please update by below link.





Specifications



Input LiPo/NiMH Cells: 2-6S LiPo, 6-Cell NiMH Current Continous : 180A / Burst : 860A
BEC 6V/7.2V Program setup switchable Max 6A Resistance 0.00024Ω
Motor Limit 4S LiPo/ 12cell NiMH: 3000KV for 4274 size, 6S LiPo/ 18cell NiMH: 2400KV for 4274 size Motor Type Sensored/Sensorless Brushless Motor [Auto detect], support 2pole, 4pole, 6pole



Features



New Firmware Version (1-8 ESC M8 V2.3) is now installed.

The new overload protection circuit system is updated.

High Voltage BEC Supported.

For more cooling, installed aluminum spacer between ESC and Fan, Fan guard.

FLOW-MAX™ OPTIMISED COOLING DESIGN
FLOW-MAX heat sink designed after various tests. Construction from thermo-conductive aluminium makes the heat sink case highly efficient for maximum cooling.

TRIPLE ESC POWER CAPACITOR
Triple esc power capacitor is based on the latest Lipo technology and features lowest possible low impedance and even more power with linear throttle filling.

ULTRA HIGH RPM COOLING FAN & GUARD
Ultra high RPM cooling fan is low profile designed. Cooling increases the ESC efficiency and performance significantly. Guard protect cooling fan under any circums-tances.

ME-SHRP FLETA Super High Response Program Card
Detail customize the settings, you can connect your ESC directly use setup and connect to your personal computer to the separately available ME-SHRP FLETA Super High Response ProgramCard.
The FLETA USB Link software can be downloaded Muchmore Racing website.
[ www.muchmoreracing.net ]
